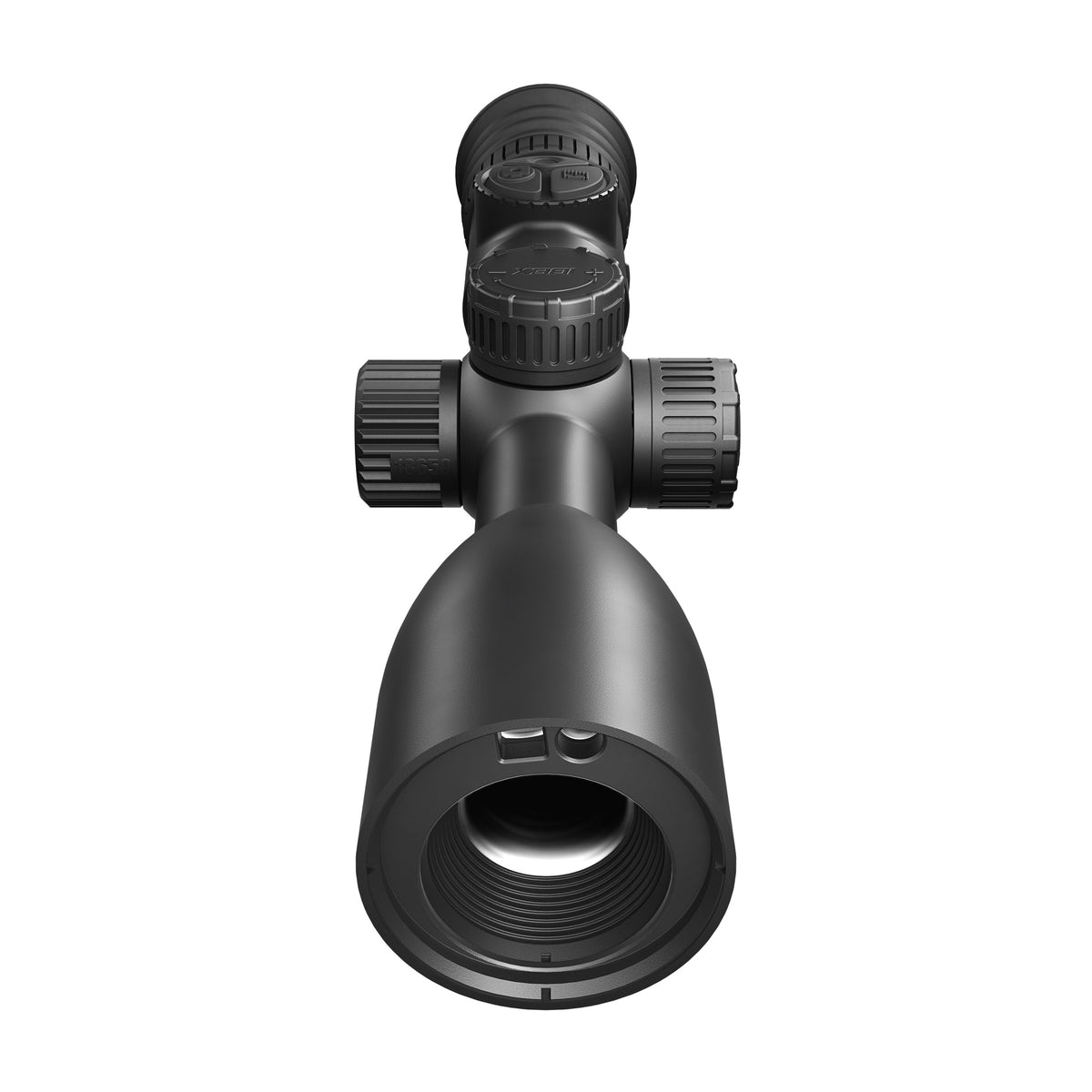

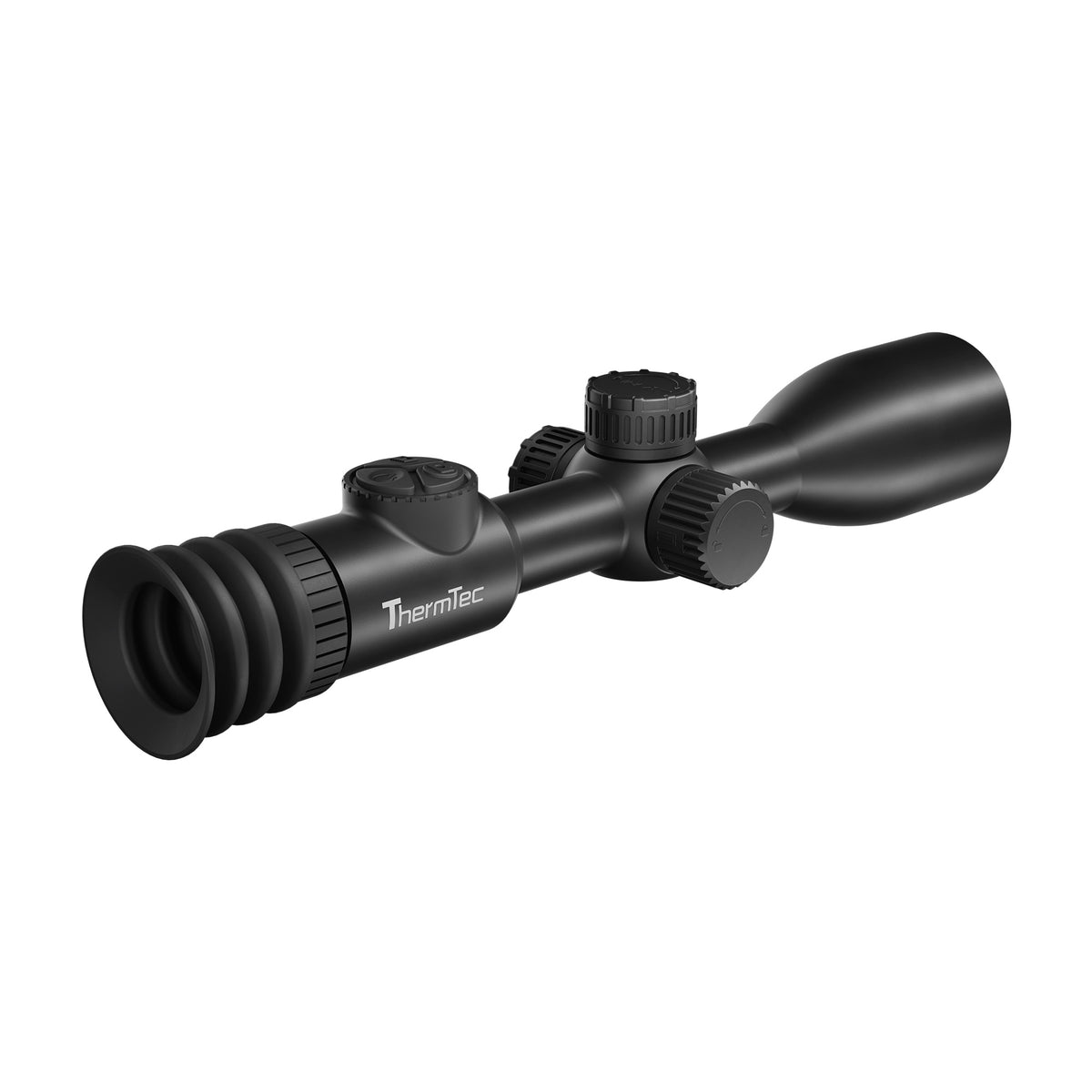

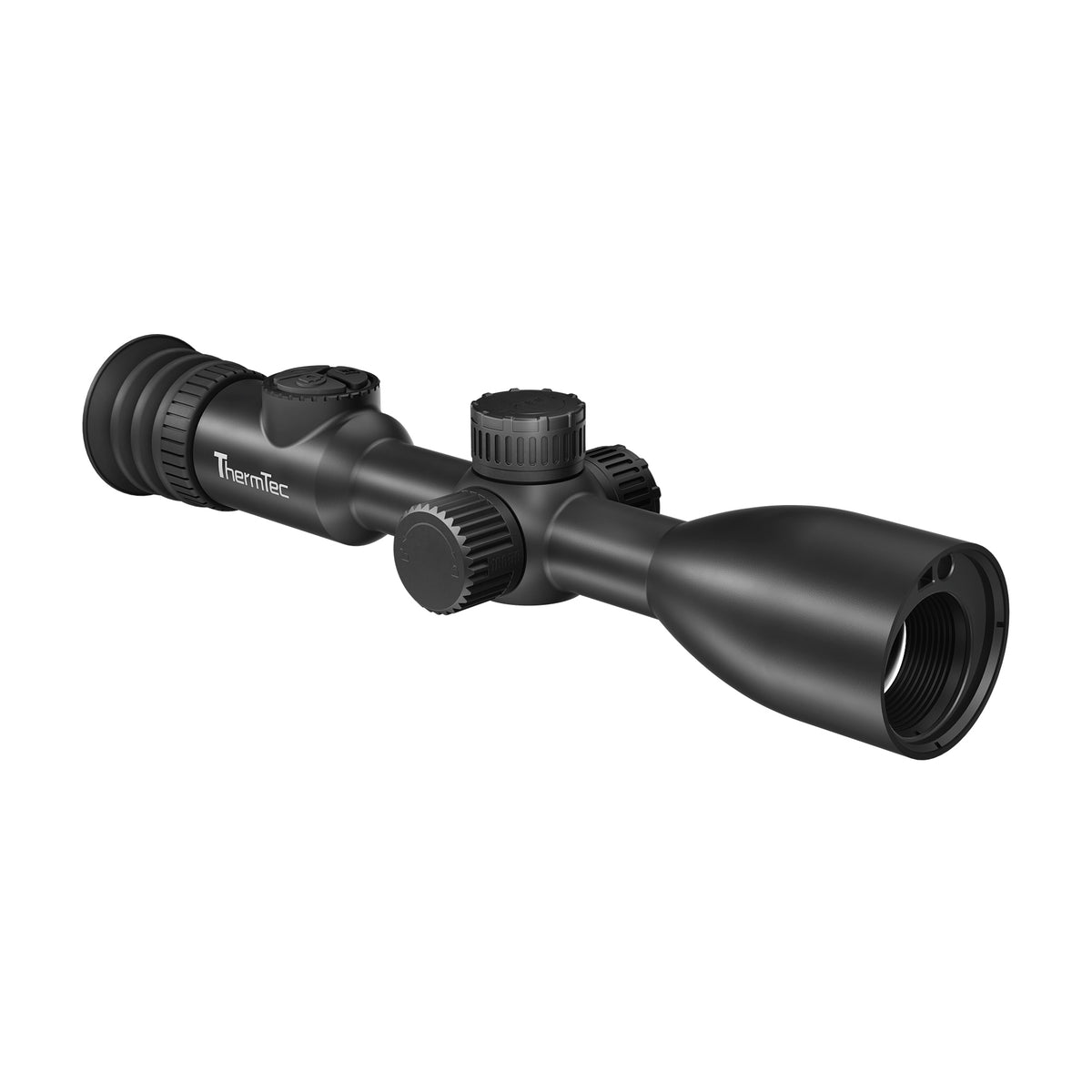

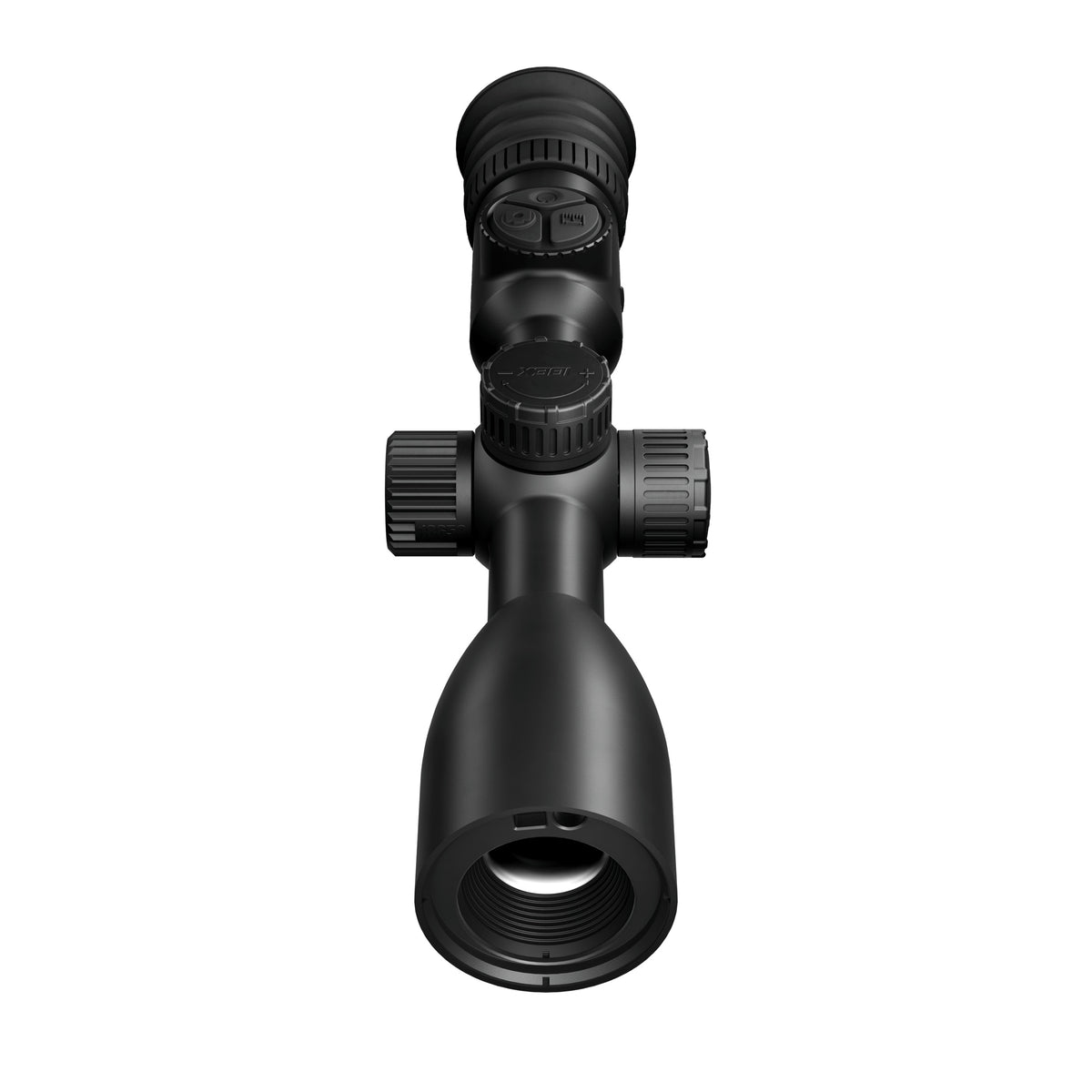

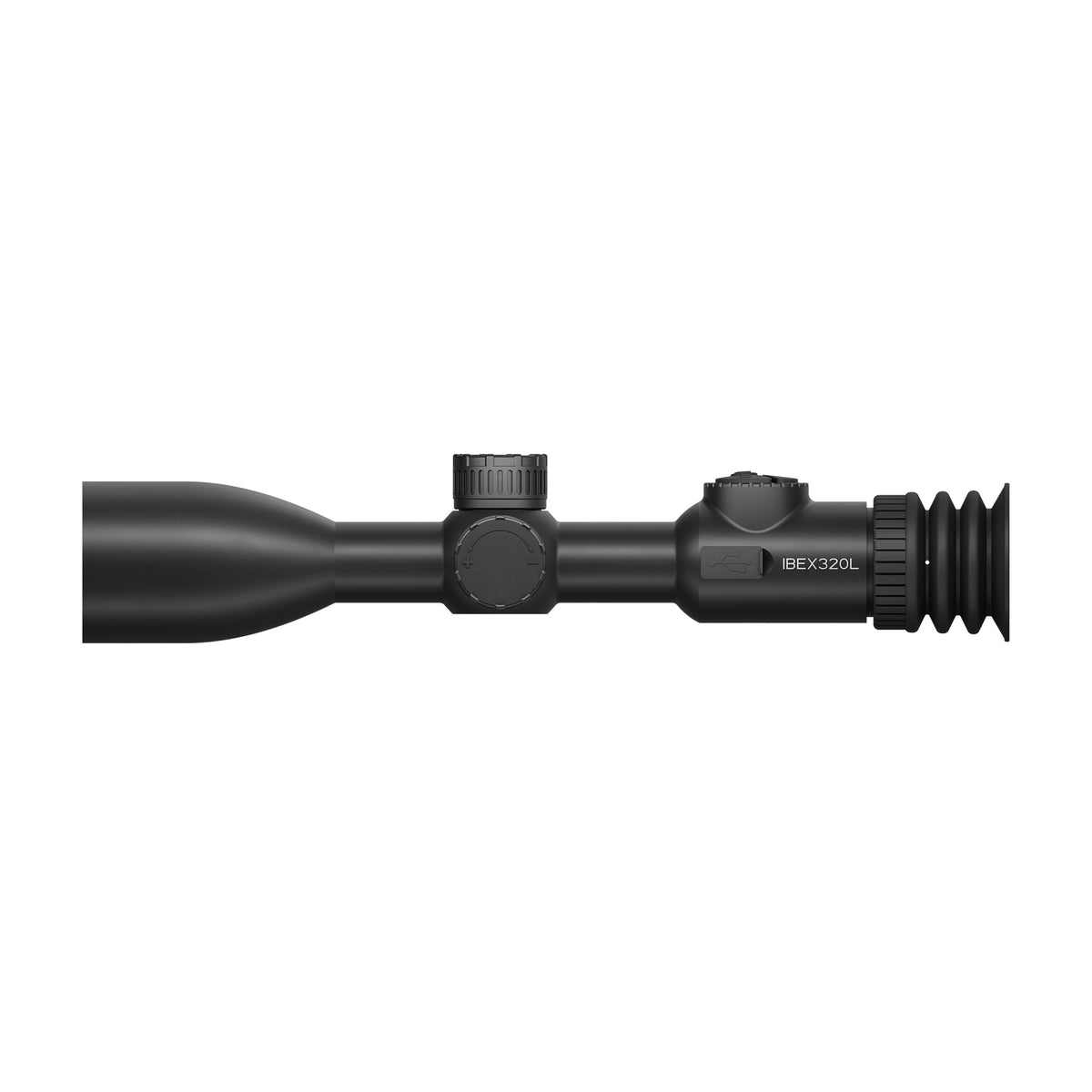

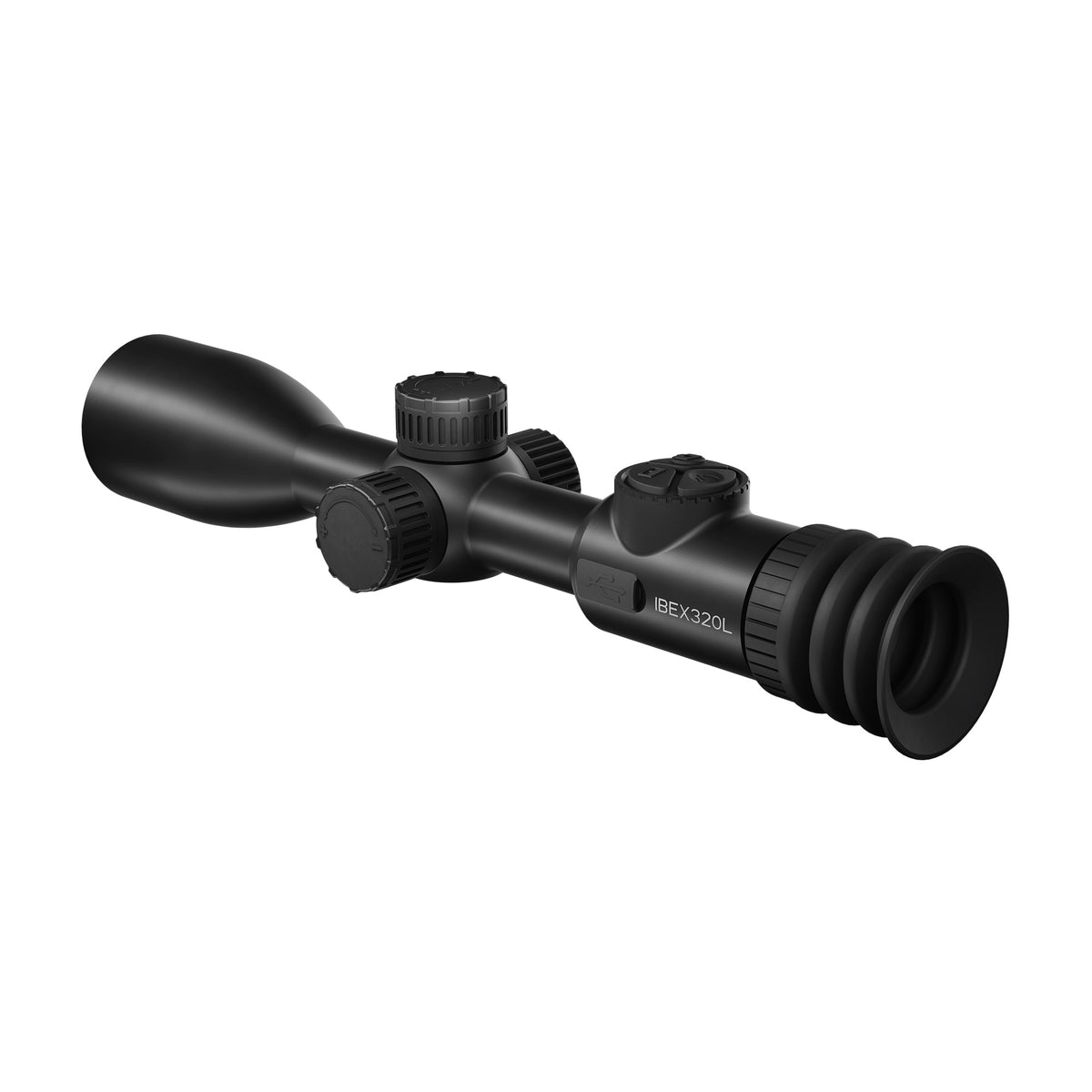

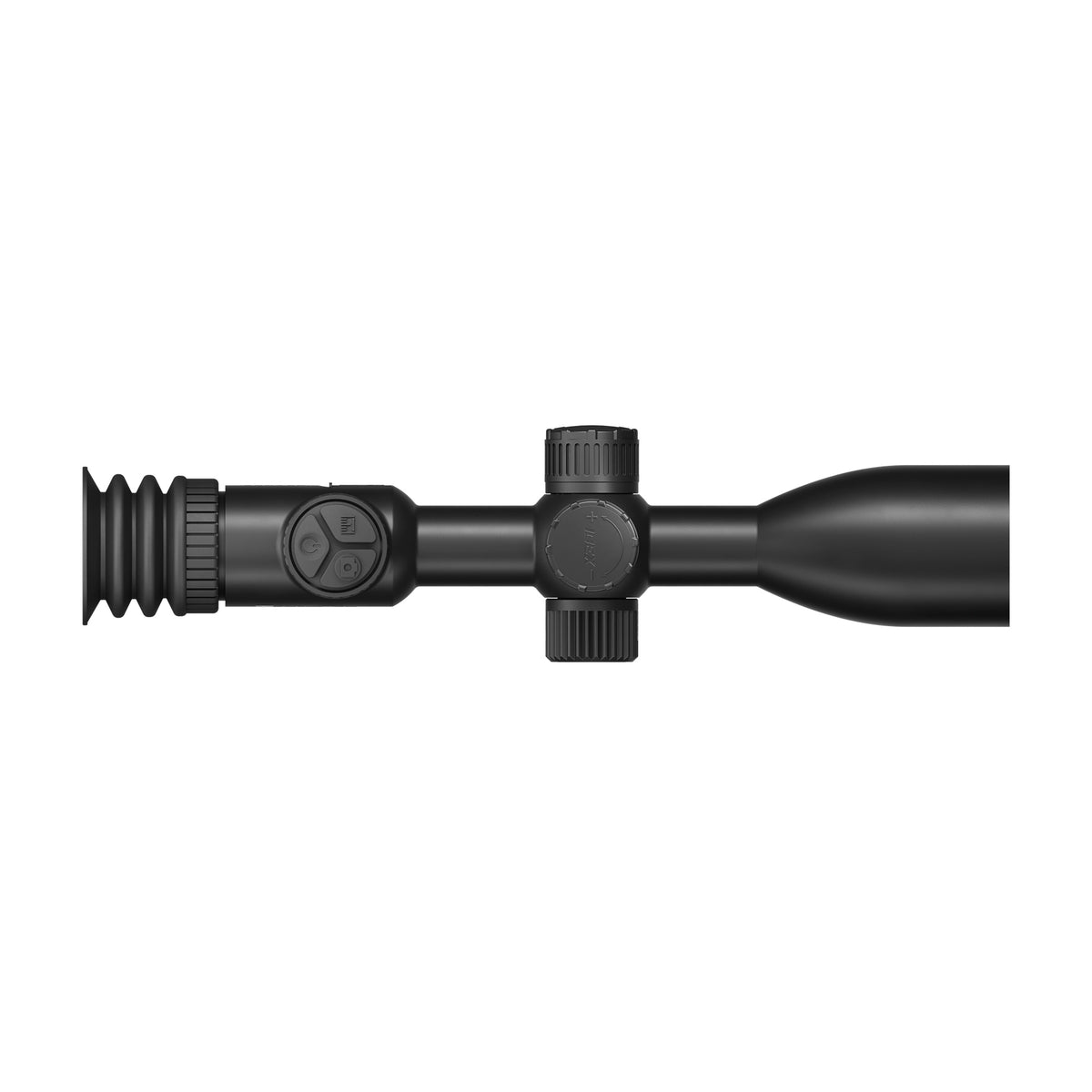

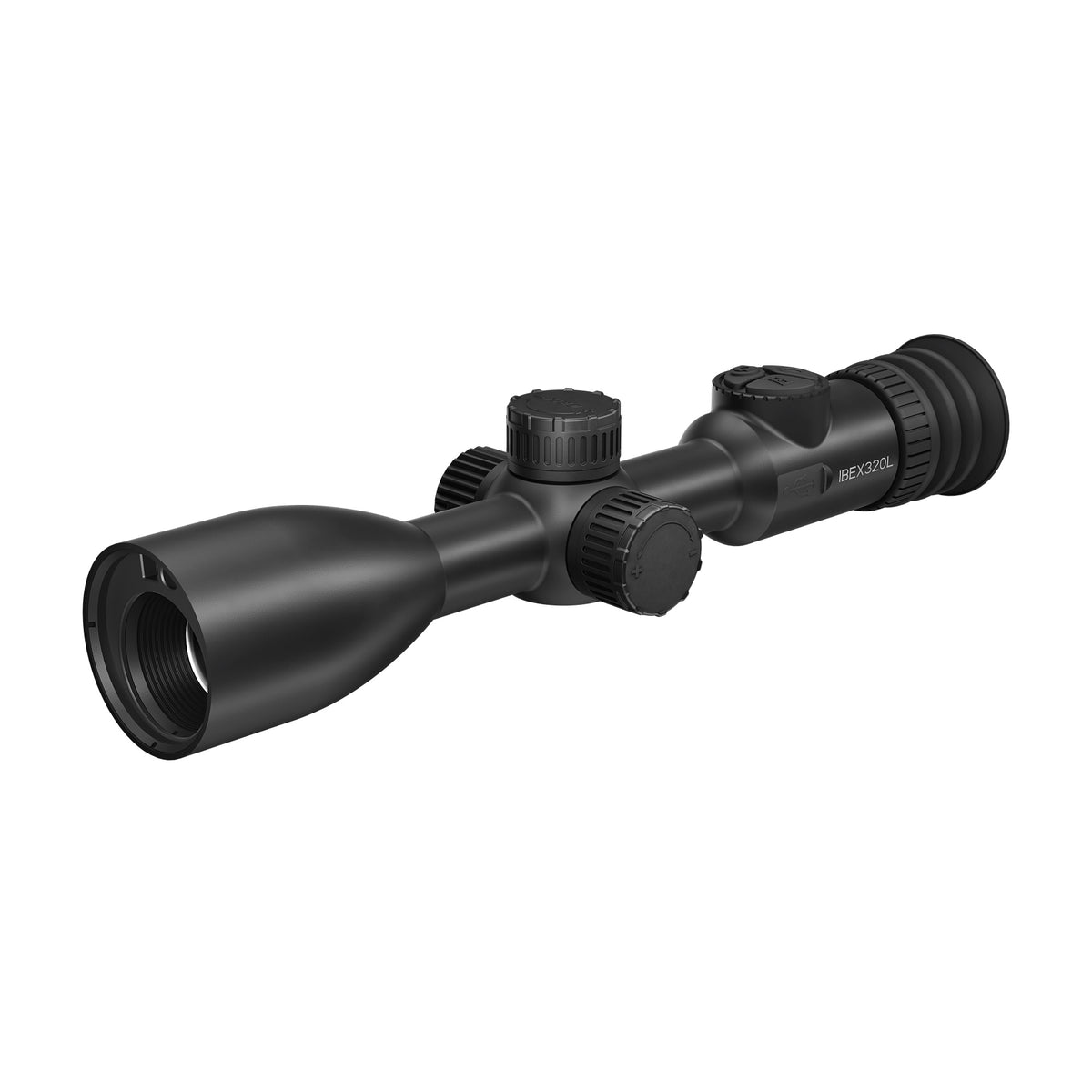

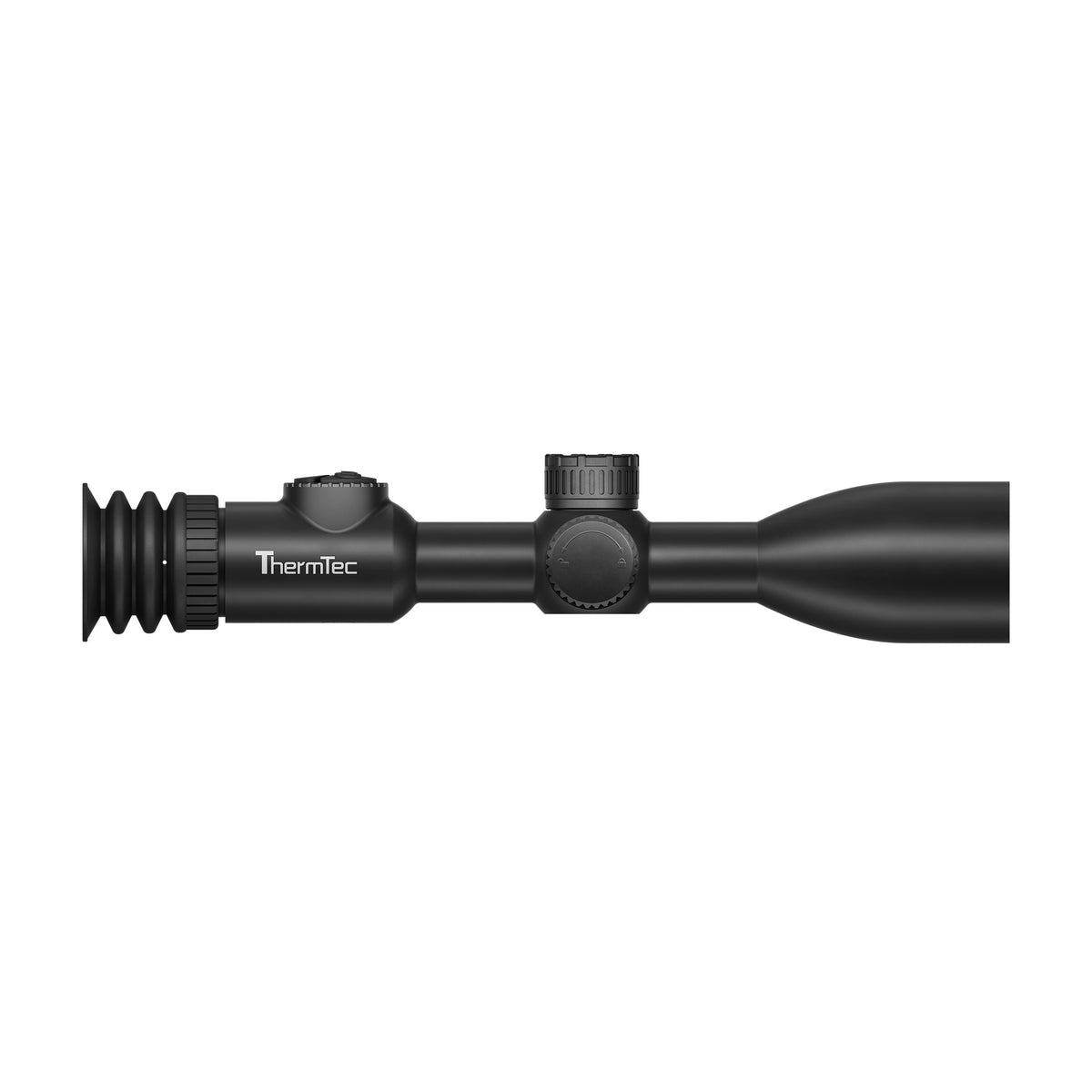

ThermTec Ibex 320L Thermal Scope

The Ibex 320L combines a 384×288 thermal sensor with a 20mm F0.9 lens to provide a wide field of view for fast target acquisition in dynamic hunting scenarios. Its integrated 1000m LRF and ballistic calculator support precise aiming, while Thermal Super Resolution and ThermTec AI Calibration enhance detail and image stability. With a lightweight 720g design and central turret focus, it delivers a practical balance of clarity, speed and ease of use in the field.

18mK Super Clarity

With NETD < 18 mK, a 50 Hz refresh rate, and 1600×1200 half inch AMOLED display, lbex captures subtle temperature differences, consistently delivering smooth and detailed image.

ThermTec AutoSight System (TASS)

The Ibex automatically returns to base magnification after a high-magnification shot, giving you the widest field of view to keep your target firmly in sight. Manual adjustment is no longer required, and the Ibex keeps you aligned with fast, dynamic action.

Two Views, One Vision

Experience the freedom to switch instantly between full-frame square and circular optical views. The 0.5＂OLED display delivers a sharp image with 1600×1200 resolution. Two display modes, both exceptionally detailed, for a hunting experience that feels instantly familiar.

Integrated LRF Design

The LRF-integrated all-in-one streamlined design enhances visual appeal and structural strength while maintaining excellent thermal performance, offering laser ranging capability up to 1000m.

Super Imaging Detail

Combining base magnification with continuous digital zoom up to 14.8x, empowered by thermal super resolution, it delivers ultra-detailed images without any loss of quality.

Central Turret Focus System

The unique central turret focus system makes focusing easier and more comfortable compared to traditional designs. It allows smoother, more natural adjustments that keep the image steady and the experience effortless.

Accurate Long-Range Shooting

The ballistic calculator optimizes the aiming process of distant targets with automatic angle compensation analysis and custom impact reticles. It ensures shots reach their intended point with precision and reliability.

Consistently Clear & Stable Image

ThermTec AI calibration reduces shutter frequency, minimizes image freezing and ensures stable and consistent images over changing environments.

Specifications

• Resolution: 384x288

• Pixel pitch: 12μm

• NETD: ＜18mK

• Spectral range: 8-14μm

• Frame rate: 50Hz

• Detection range: 1000m

• Objective lens: 20mm@F0.9

• Field of view: 13.1° x 9.8°

• m @100m: 23.04 x 17.28

• Magnification: 2.1x

• Digital zoom: 1.0-4.0X

• Eye relief: 50mm

• Exit pupil: 6mm
• Dioptre: ±5D

• Display Type: AMOLED

• Display Resolution: 1600x1200

• Display size: 0.5 inch

• Max. recoil power: 6000J

• Mounting brackets: Standard 30mm rings

• RAV: Yes

• TASS: Yes

• Audio recording: Yes

• Manual zeroing: Yes

• Zeroing profiles: 6

• Freeze zeroing: Yes

• Picture-in-picture: Yes

• LRF: 1000m

• Ballistic calculator: Yes

• Image calibration: Manual/Auto

• Photo/video playback: Yes

• Inbuilt memory: 64GB

• Type C: Data transfer, Battery charge

• Hotspot: Yes

• Battery type: Replaceable, 1*18650

• Battery life: 6H

• Operating temperature: -20- +50℃

• IP rating: IP67

• Weight: 720g ± 5g (without battery)

• Size: 344mm × 86mm × 70mm

• External cable: USB data cable
